22KW/30HP permanent magnet variable frequency air compressor
|Terms of Trade:||FOB,CFR,CIF,EXW,FCA|
|Min. Order:||1 Set/Sets|
|Delivery Time:||30 Days|
|Place of Origin:||CHINA|
|Certificate:||IS9001/ISO 14001/ CE|
Model No.: MP22
Insulation grade F, protection grade IP54,adapt to the bad environment.
Split design, easy maintenance.
Without gearbox design, motor is connected directly with rotor through the coupling, high transmission efficiency.
Low temperature rise, independent cooling fan design, so that the motor cooling is not affected by the speed regulation.
With PT100 temperature protection switch to avoid high temperature degaussing.
Large speed range, high precision and large adjustment range.
high temperature magnetic steel UH, 180 ℃ not break the magnetic.
permanent magnet motor is 3%~5% higher than normal motor, and constant efficiency.

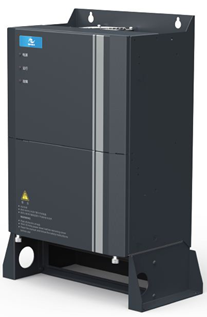

The third generation dual variable frequency inverter
Dual variable frequency system: permanent magnet motor variable frequency + cooling fan motor variable frequency , one-piece integrated structure, extreme energy saving.
Constant pressure air supply: the supply pressure is precisely controlled under 0.01 MPa.
Constant temperature air supply: constant temperature set at 85 ℃, with the best lubrication
Eliminates empty load, reduces the empty load energy consumption by 45%.
Large Frequency range 30%~ 100%
Vector air supply, accurate calculation, ensure that the air flow of air compressor is consistent with the demand of the user system.
Intelligent control system
Direct display: discharge temperature, discharge pressure, operating frequency, current, power, running state, etc.
Real-time monitoring of discharge temperature, discharge pressure, current, frequency fluctuation.
Optional the Internet of things module, external cloud intelligent management system, realize the functions such as remote start-stop and remote online monitorin
|compressor||type /control mode||permanent magnet variable frequency|
|free air delivery （m3/min）||1.03~3.7||0.93~3.1||1.03~3.5|
|working pressure （MPa）||0.7||1.0||0.8|
|air flow adjustment||variable frequency|
|inlet pressure （MPa）||0.1|
|working temperature （℃）||-5～40|
|discharge temperature （℃）||<105|
|outlet temperature （℃）||under environment temperature +15℃|
|outlet oil content （ppm）||≤3|
|air end vibration（mm/s）||≤7.1（GB/T 7777）|
|Microcomputer control||discharge pressure, discharge temperature, current, maintenance reminder, failure alarm, intelligent operation, linkage control and remote start and stop, and Internet of things (optional)|
|safety protection device||Safety valve, high discharge temperature, high discharge pressure, over current, underphase, reverse phase|
|maintenance indicator||Air filter, oil filter, oil and air separator filter , lubricating oil, grease|
|weight （kg）||about 450|
|type /start method||permanent magnet motor/variable frequency star|
|cooling method||air cooled （Independent fan）|
|voltage /frequency /speed /pole||380V/166Hz/2500/8||380V/142Hz/2130/8||380V/166Hz/2500/8|
|cooling system||cooling method||air cooled|
|control||variable frequency control|
|type / Installation||axial flow fan/blow|
1. Q: What is used for?
A: Machining, mining, shipbuilding, water conservancy, or energy automobile, cement, textile, food,
medicine, highway, railway or urban construction
2. Q: What is the Pressure?
A: We can supply pressure 7 / 8 / 10 / 13 BAR
3. Q: Air capacity (motor power )
A: From 5.5 KW to 250 KW
4. Q: Protection grade
5. Q: Certificate?
A: ISO 9001:2008, ISO 14000:2004, CE
6. Q: Delivery time?
A: Regular products 30 days
7. Q: What is the packing?
A: Wooden case
8. Q: Warranty
A: 18 months related parts warranty and 2 years air end warranty
